Logged on 09/30/2009 12:33:03 PM
MS:VLAAA4h_LF Sky model - grid; 5 sources in each direction; 30 arcmin; 1Jy flux Z jones - Rotate ionosphere; sine_tid_model TEC model; TEC=10; Relative amplitudes=0.1; X size=100Km; X speed=150Km/h; Y size=120Km; Y speed=200 Km/h; no central phase correction
Logged on 09/30/2009 12:41:09 PM

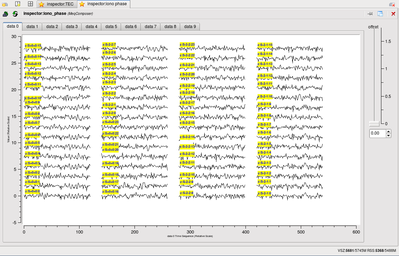

Column: DATA Time slots:100 Image shows phase fluctuations
|
Logged on 09/30/2009 12:43:45 PM
64 channels I stokes 512 pixels, 150 arcmin image
VLAAA4h_LF.MS.DATA.channel.64ch.fits (header) 64x1x512x512 FITS cube, 4 planes are given below. | ||||||||||||||
|
Image plane #0.
|
|||||||||||||
|
Image plane #1.
|
|||||||||||||
|
Image plane #2.
|
|||||||||||||
|
Image plane #3.
|
|||||||||||||
Logged on 09/30/2009 12:51:09 PM
channel 35
 |
Logged on 09/30/2009 03:42:33 PM

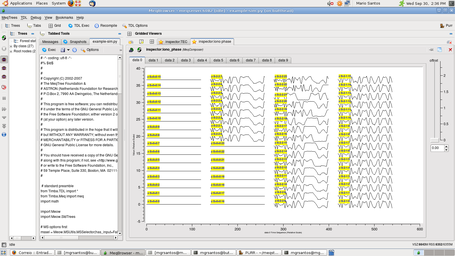

set correct for central phase and compile Image shows central phase is now corrected...
 |
|
Logged on 09/30/2009 03:44:57 PM
Central point source looks much better. Channel 35 also shown.
VLAAA4h_LF.MS.DATA.channel.64ch.fits (header) 64x1x512x512 FITS cube, 4 planes are given below. | ||||||||||||||
|
Image plane #0.
|
|||||||||||||
|
Image plane #1.
|
|||||||||||||
|
Image plane #2.
|
|||||||||||||
|
Image plane #3.
|
|||||||||||||
 |
||||||||||||||
Logged on 09/30/2009 03:51:49 PM
Choose subtract from MS on TDL options simulation mode. Uncheck the Z jones. Final image shows the residuals. See also channel 35 (enhanced with histogram: -60 +60 mJy/beam). Thats it!
VLAAA4h_LF.MS.CORRECTED_DATA.channel.64ch.fits (header) 64x1x512x512 FITS cube, 4 planes are given below. | ||||||||||||||
|
Image plane #0.
|
|||||||||||||
|
Image plane #1.
|
|||||||||||||
|
Image plane #2.
|
|||||||||||||
|
Image plane #3.
|
|||||||||||||
 |
||||||||||||||
